- Sale Price: $30,995
- MSRP: $52,524
- Save: $21,529
-
29ft long
-
5,790 lbs
-
Sleeps 3
-
1 slides
-
Two Entry/Exit DoorsRear Kitchen

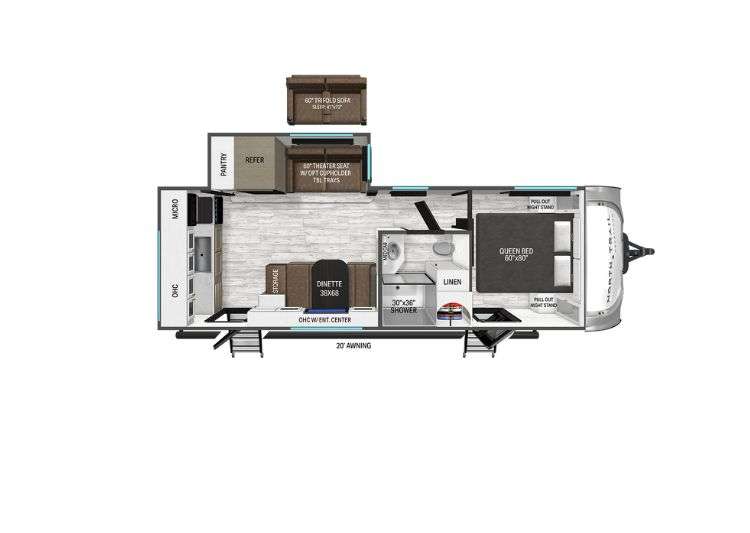

240RK Floorplan
Specifications
| Sleeps | 3 | Slides | 1 |
| Length | 28 ft 8 in | Ext Width | 8 ft |
| Ext Height | 10 ft 8 in | Int Height | 6 ft 6 in |
| Hitch Weight | 705 lbs | GVWR | 7400 lbs |
| Dry Weight | 5790 lbs | Cargo Capacity | 1610 lbs |
| Fresh Water Capacity | 55 gals | Grey Water Capacity | 61 gals |
| Black Water Capacity | 30.5 gals | Available Beds | Queen |
| Refrigerator Type | 12V | Refrigerator Size | 11 cu ft |
| Cooktop Burners | 3 | Shower Size | 30" x 36" |
| Number of Awnings | 1 | LP Tank Capacity | 20 |
| Water Heater Type | Tankless | AC BTU | 13500 btu |
| TV Info | LED Smart TV | Awning Info | 20' Max-Length Power w/LED Light |
| Axle Count | 2 | Number of LP Tanks | 2 |
| Shower Type | Standard | Solar Wattage | 200 watts |
| VIN | 1UJB80BN5T1JX9063 |
Description
Big rear-kitchen comfort in a travel trailer measuring less than 29 feet.
The 2026 Heartland North Trail 240RK is designed for couples who want a comfortable, residential-style camping experience without towing an oversized trailer.
At only 28'7" long and 5,790 lbs. dry, the North Trail 240RK delivers an impressive combination of manageable size, a spacious rear kitchen, theater seating, a private queen bedroom, and two convenient entry doors.
It is an excellent choice for shoppers searching for a rear kitchen travel trailer, lightweight couples camper, travel trailer with theater seating, or camper under 30 feet.
A REAR KITCHEN THAT USES THE FULL WIDTH
The full-width rear kitchen is the centerpiece of the North Trail 240RK.
Generous seamless countertops provide valuable space for preparing meals, serving food, or setting up a coffee station. The kitchen includes a stainless-steel single-basin sink with a high-rise pullout faucet and butcher-block cutting board, a three-burner range, and an 11-cu.-ft. 12V refrigerator.
A pantry provides additional storage for groceries, cookware, and camping essentials, making this kitchen especially useful for longer weekends and extended trips.
Because the kitchen occupies the rear wall, it remains visually connected to the living area while giving the cook a dedicated workspace.
THEATER SEATING FOR REAL RELAXATION
Across from the kitchen, a 60-inch theater seat gives you a comfortable place to relax after a day outdoors.
The slide-out opens the main living area and creates additional floor space, while the 38-by-68-inch booth dinette provides a convenient place for meals, games, work, or an occasional overnight guest.
An LED smart TV adds entertainment without requiring the space of a much larger trailer.
This layout is particularly appealing to couples who want something more comfortable than a basic dinette-and-sofa arrangement but do not want to tow a 35-foot travel trailer.
PRIVATE BEDROOM WITH ITS OWN ENTRANCE
At the front of the 240RK is a private bedroom featuring a true 60-by-80-inch residential queen bed.
Wardrobes and pull-out nightstands on both sides provide useful storage and convenient space for phones, books, glasses, or a CPAP machine.
One of the trailer’s two entry doors opens directly into the bedroom. This gives you easier access when loading personal belongings and lets one person enter or leave without walking through the entire coach.
The second entrance opens near the kitchen and living area, creating a practical flow through the trailer at the campsite.
A FULL BATHROOM WITH A ROOMY SHOWER
The centrally located bathroom includes a 30-by-36-inch shower, porcelain foot-flush toilet, vanity, and linen storage.
Its position between the bedroom and living area allows convenient access from either end of the trailer while maintaining bedroom privacy.
COMFORTABLE OUTDOOR LIVING
A 20-foot power awning with LED lighting creates a large shaded outdoor living area for relaxing, dining, or entertaining at the campsite.
The North Trail 240RK also includes a 200-watt solar panel, tankless water heater, power tongue jack, self-adjusting electric brakes, and an app-monitored tire-pressure monitoring system.
Fresh-water capacity is 55 gallons, with a generous 61-gallon gray-water capacity and a 30.5-gallon black-water tank.
NORTH TRAIL 240RK HIGHLIGHTS
-
Full-Width Rear Kitchen
-
Only 28'7" Long
-
5,790 lbs. Dry
-
7,400-lb. GVWR
-
705-lb. Dry Hitch Weight
-
1,610 lbs. of Cargo Capacity
-
60" Theater Seating
-
Private Front Bedroom
-
60" x 80" Residential Queen Bed
-
Two Entry Doors
-
38" x 68" Booth Dinette
-
11-Cu.-Ft. 12V Refrigerator
-
30" x 36" Shower
-
LED Smart TV
-
20' Power Awning
-
200-Watt Solar Panel
-
Tankless Water Heater
-
55-Gallon Fresh-Water Capacity
-
61-Gallon Gray-Water Capacity
BIG COMFORT WITHOUT A BIG TRAILER
The 2026 Heartland North Trail 240RK proves that you do not need a massive travel trailer to enjoy a spacious kitchen, comfortable seating, a private bedroom, and excellent storage.
Its full-width rear kitchen gives you real countertop space. The theater seating provides a comfortable place to unwind. Two entry doors improve convenience and privacy. And its sub-29-foot length makes it easier to maneuver, store, and fit into more campsites than many residential-style couples trailers.
If you are searching for a 2026 Heartland North Trail 240RK for sale, rear kitchen couples travel trailer, lightweight camper with theater seating, or travel trailer under 30 feet, this floorplan deserves a close look.
Full-width rear kitchen. Theater-seat comfort. Less trailer to manage
Features
Standard Features (2026)
Standard Exterior Equipment
- 1.5 in. fresh water drain valve (N/A 14UL)
- Aerodynamic, rounded front profile with aluminum framing
- Strong Foundation: American-made Norco (N/A 14UL)
- Z-frame with integrated A-frame
- Battery quick-disconnect (N/A 14UL)
- Dark-tinted safety-glass windows
- Exterior TV 120V recept and cable hook-ups
- Front diamond plating
- Galvanized steel and impact resistant wheel wells
- Exclusive TrusstXL Roof System (rated for 4500 lbs)
- Outdoor camp kitchen with galvanized steel bases (select models) (N/A 14UL)
- PVC roofing membrane (limited lifetime warranty)
- Swing-out entry door assist handle (N/A 14UL)
- Slide-topper prepped (N/A 14UL)
- Solid Step (N/A 14UL)
- 60K BTU On Demand water heater (N/A 14UL)
Standard Interior Features
- Upgraded 4" dinette cushions with higher-density foam
- 4 in. soft-touch bunk mats (select models)
- 60 x 80 in. residential queen beds (60 x 76 in. in Murphy bed models) (N/A 14UL)
- 75 lb. full extension drawer guides
- Hidden-hinged cabinet doors
- LED lighting throughout
- Plywood dinette, bed, bunk and shower/tub bases
- Seamless countertops throughout (N/A 14UL)
- Residential vinyl flooring throughout
- Solid hardwood maple cabinet doors
- USB charging ports (multiple locations) (N/A 14UL)
- Bunk Capacity - 600lb double bunks and 300lb single bunks (N/A 14UL)
- Interior Speakers (N/A 14UL)
- Roller Shades with radiant barrier backer (N/A 14UL)
- Plywood dinette, bed, bunk and shower/tub bases
- Battery Disconnect (N/A 14UL)
- Framed in window s with lumber core styles (N/A 14UL)
- CPAP prepped bedroom (both sides) (N/A 14UL)
Camping In Comfort Package (Mandatory)
- Self-adjusting electric brakes
- Tamarack tires with 6-year pro-rated warranty
- 13,500 BTU roof-mounted Quiet Series A/C with 12% increase in CFM & 10% reduction in noise
- CoreShield Walls -2 in. Vacuum-bonded laminated sidewalls and floors with 2 lb. density foam (including slide end walls and rear wall)
- Azdel Onboard composite on interior & exterior of all vacuum-bonded sidewalls
- 20 lb. LP gas bottles with auto-regulator, ABS cover, & fill gauge
- 55 gal. fresh water tank
- Automotive-style aluminum rims
- Black tank flush
- Detachable power cord
- Inverter pre-wire outlets
- Max-length power awning with LED light
- On-demand 60,000 BTU water heater
- Power tongue jack
- Rear 2-inch receiver prep
- Residential cabinetry w/ large doors and drawers
- Rear back-up camera prep
- Under-mount spare tire, sewer hose storage compartment
- Hidden cabinet hinges
- Roller shades w/ radiant barrier backer
- 5K BTU Electric fireplace (N/A 210MB, 190MB, 240RK)
Camping in Comfort Package 14UL Only (Mandatory)
- 13,500 BTU roof mounted A/C
- 19,000 BTU furnace
- 2-burner stovetop
- 20 lb. LP gas bottle with auto-regulator & fill gauge
- 5 cu. ft. 12V refrigerator
- CoreSheild sidewalls – vacuum bonded sidewalls w/ interior & exterior Azdel®
- Dark tint privacy windows
- Detachable power cord
- Electric vent in bathroom & kitchen
- Entry door with window and shade prep
- Exterior porch light
- Hidden cabinet door hinges
- Inverter pre-wire outlets
- Keyed-Alike® entry and baggage doors
- LED lights throughout
- Microwave oven
- On demand tankless water heater
- Pleated window shades
- Plywood dinette bases
- Power awning
- Rear back-up camera prep
- Rear bumper
- Roof mounted solar prep
- Shower surround
- Stabilizer jacks
- Tongue jack
Premium Package (Mandatory) (N/A 14UL)
- Invision appliance package with 11 cu. ft. 12V refrigerator
- App-monitored TPMS
- ThermaShield (zero-to-100-degree tested weather insulation package)
- Front slam-latch baggage doors
- Solid fold-down step with aluminum tread on main entry door step
- LED smart TV
- Contemporary graphics package
- Porcelain foot-flush toilet
- PowerUp Solar 1: (1) 200W solar panel and 30-amp digital controller
- Stainless steel single-basin kitchen sink with high-rise pullout faucet and butcher block cutting board
- Rear exterior ladder
- Dark tinted privacy windows
Options
- PowerUp Solar 1 Package – 200 W panel & 30-amp solar controller
- PowerUp Solar 2 Package – (2) 200 W panels, MPPT 30-amp solar controller, 1800-Watt Inverter
- 15,000 BTU AC IPO the 13,500 BTU AC in main living (n/a 14UL)
- 2nd AC: 13,500 BTU direct-dump AC in main bedroom (select models) (n/a 14UL, 210MB, 190MB, 220MB)
- 50 AMP service with 2nd A/C prep (n/a 14UL, 210MB, 190MB, 220MB)
- (2) – 30# LP gas bottles with integrated gas level gage (n/a 14UL)
- 2? RECEIVER Hitch (n/a 14UL)
- Free-standing table and chairs (select models) (n/a 14UL)
- 120V Heated Tank Pads (n/a 14UL)
- Residential 72?x80? king bed (non-Murphy bed options) (n/a 14UL)
- Theater seating (Select Models) (n/a 14UL
Caliber Package (N/A 14UL)
- Norco 5.1 Power Stabilization System
- Maxxair® vent fan in bathroom & living room
- Fiberglass molded front cap
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
