+41
- Sale Price: $145,992
- MSRP: $199,393
- Save: $53,401
-
32ft long
-
Sleeps 8
-
2 slides
-
7.3L V8
-
335 HP

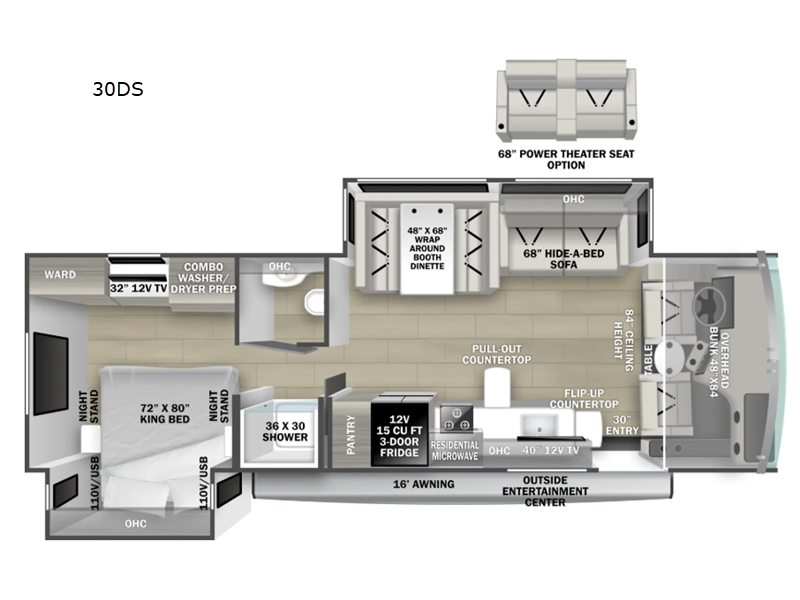

30DS Floorplan
Specifications
| Sleeps | 8 | Slides | 2 |
| Length | 31 ft 11 in | Ext Width | 8 ft 5 in |
| Ext Height | 12 ft 5 in | Int Height | 7 ft |
| Hitch Weight | 5000 lbs | GVWR | 20500 lbs |
| Fresh Water Capacity | 52 gals | Grey Water Capacity | 42 gals |
| Black Water Capacity | 42 gals | Tire Size | 245/70R19.5 |
| Furnace BTU | 35000 btu | Fuel Type | Gas |
| Engine | 7.3L V8 | Chassis | Ford F53 |
| Horsepower | 335 hp | Fuel Capacity | 80 gals |
| Wheelbase | 228 in | Number Of Bunks | 1 |
| Available Beds | King | Torque | 468 ft-lb |
| Refrigerator Type | 12V Three Door | Refrigerator Size | 15 cu ft |
| Cooktop Burners | 3 | Shower Size | 36" x 30" |
| Number of Awnings | 1 | Axle Weight Front | 7000 lbs |
| Axle Weight Rear | 13500 lbs | LP Tank Capacity | 103 lbs |
| Water Heater Capacity | 6 gal | Water Heater Type | Gas/Electric |
| AC BTU | 28500 btu | Basement Storage | 115 cu. ft. |
| TV Info | LR 40" Flip-Up LED 12V TV, BR 32" Flip-Up LED 12V TV, Ext. 32" LED 12V TV | Awning Info | 16' Power with LED Light |
| Washer/Dryer Available | Yes | Gross Combined Weight | 26000 lbs |
| Shower Type | Standard | Electrical Service | 50 amp |
| VIN | 1F66F5DN1S0A03684 |
Description
Forest River FR3 Class A gas motorhome 30DS highlights:
- Separated Bathroom
- 40" LED 12V TV
- Power Cab Bunk
- King-Size Bed
- Exterior 32" 12V TV
- Passenger Work Station
Whether you travel with your spouse, grandkids or friends, this FR3 Class A gas motorhome allows you to travel in style with plenty of additional sleeping choices from the power overhead bunk to the furniture once they are set up at night. You can dine at the wrap-around booth dinette, relax on the hide-a-bed sofa, and make full meals in the kitchen which also includes a residential microwave and countertop extension. The separated bathroom allows someone to take a shower while another freshens up with the private sink and toilet, or maybe you decide to close this area off within the bedroom. Every night you can sleep like a king while watching the 32" LED 12V TV in the bedroom, and maybe you decided to add the washer/dryer option to keep everything clean while on the road.
With each FR3 Class A gas motorhome by Forest River, you will find an easy-to-drive coach with a spacious interior allowing you to gather with friends and family with convenience and style found throughout! Each is built with vacuum-bonded construction, a one-piece fiberglass roof with extended rain spouts, a steel firewall and A-pillar extension, Bi-LED headlamps and lower LED fog lights, and grey Rotocast storage boxes with drains. Inside, you will enjoy black hardware, appliances, plumbing fixtures, and a glass shower door frame. You will also find a stainless steel kitchen sink with a bamboo cutting board and roll-up dryer, heavy-duty full-extension ball bearing drawer guides, dual-access dinette storage with doors, and nightstands with charging stations to keep your cellphones ready for whatever is next. Make your selection today!
Features
Standard Features (2026)
Exterior Storage Capacity
- 30DS - 115 cu. ft.
- 32DS - 152 cu. ft.
- 33DS - 161 cu. ft.
- 34DS - 184 cu. ft.
Chassis and Cockpit
- Ford F53 Gas Class A Motor Home Chassis
- 7.3L 445 cu in V-8 6-Speed TorqueShift Transmission 335 HP & 468 Ft-Lb
- MORryde Chassis Conversion Upfit
- Power Front Sun/Privacy Shade
- Driver & Passenger Side Manual Pull Down Roller Shades
- Two Tone 5-Year Ultra Leather Driver/Passenger Seating w/Double Stitching
- Truck Bed Lined - Low Profile Cockpit Engine Cover
- Driver/Passenger LED Map Lights
- Driver/Passenger Speakers
- Fixed Cockpit Diamond Plate Rubber Floor Mats
- Adjustable 3 Point Seat Belts (Driver/Passenger)
- Removable Pedestal Cockpit Conversation Table w/ Cup Holders
- Molded ABS Ergonomic Cockpit Dash
- Passenger Side Flip Over Work Station
- Deep Passenger Side Glove Box
- Passenger Side 110 & 12v Outlets
- Driver & Passenger Side Molded Arm Rests w/ Cup Holder
- Sony 10.1" Dash Radio AM/FM/Bluetooth/Color Back and Sideview Camera Monitor/Wireless Apple CarPlay & Android Auto
- Center Switch Bank
- Phone & Tablet Holder
- Flush Access Panel (Top of Dash)
- Multi-Port USB / 12V Charging Station
Construction and Exterior
- 32" Exterior LED 12V TV
- Vacuum Bonded Construction (Roof / Sidewalls / Floor)
- Power Gear SlimRack® Slide outs (Deep Slide outs Various Models)
- Pearl Grey Gel-Coat Sidewalls w/ Matte Black Graphic Package
- Pearl Grey Gel-Coated Fiberglass Front Cap w/ Auto Bonded Windshield & Lighted Logo
- Matte Black Side-Swing Front Grill w/Mesh Bug Shield
- Steel Firewall & A-Pillar Extension
- Bi-LED Headlamps & Lower LED Fog Lights
- LED Turn Signals, LED Marker Lights & LED Strip/Turn Light
- Front License Plate Landing w/ Mounting Bracket
- Power / Heated Exterior Mirrors
- Body Mounted Side & Rear view Camera Package
- One Piece Fiberglass Roof w/ Extended Rain Spouts
- Heavy Duty Slam Latch Storage Compartment Doors
- 30" Wide Entry Door w/ Deadbolt Lock & Screen Door
- Triple Electric Hideaway Entrance Steps
- Rubberized Entry Assist Handle
- Max Flow Slider Windows
- Grey Rotocast Storage Boxes w/Drains
- Power Patio Awning w/LED Light
- Slideout Room Topper Awnings
- Outside Shower
- Dual Rear LED Tail Lights
- Rear License Plate Bracket
- Powder Coated Steel Rear Bumper
- 5,000 lb. Tow Hitch w/7-Way Plug (pre-wired for brake controller & charge line)
- Outside Entertainment Center w/TV & Marine-Grade Speakers
- Quick Connect Exterior LP Fitting
- Stainless Steel Wheel Liners w/ Valve Extenders
Interior
- Solid Hardwood Cabinetry Throughout the Motorhome
- Stainless Steel Appliances
- Flush Floor Construction (no steps into cockpit)
- Interior Metal Entry Assist Handle
- Rubber Tread Entry Steps
- Power Fold-Away Overhead Bunk w/Ladder & Safety Net (350 lb Weight Capacity)
- 84" Interior Ceilings
- LED Lighting Throughout (5000K Cool/Daylight White)
- Black Hardware, Appliances, Plumbing Fixtures, Glass Shower Door Frame
- IVC Residential Vinyl Flooring
- Custom Countertops w/Flip-up & Pullout Countertop Extensions
- Stainless Steel Kitchen Sink w/Bamboo Cutting Board & Roll Up Dryer
- Trash Can Storage Area Below Sink
- 30" Residential OTR Microwave Oven
- Large 15 cu. ft. 12V 3-Door Norcold Refrigerator
- 3-Burner Cooktop w/ 22" Oven, Flush Mount Glass Stove Cover
- Two Tone 5-Year Ultra Leather Sofa (Hide-a-Bed 30DS, Jack Knife 32DS)
- Two Tone 5-Year Ultra Leather Theatre Seating w/ Cup Holders (33DS, 34DS)
- Two Tone 5-Year Ultra Leather Wrap Around Dinette Booth w/ Cup Holders (Comfort Lounge)
- Dual Access Dinette Storage w/ Doors
- Heavy Duty Full Extension Ball Bearing Drawer Guides
- Black Roller Shades w/ Residential Window Treatments
- Kitchen Flip Up 40" LED TV w/ Storage Area Behind (30DS)
- 40" LED TV w/ Dual Dinette Windows (32DS)
- 40" LED TV (33DS)
- 40" LED TV w/ Hidden Pantry Area Behind (34DS)
- Oversized Kitchen Pantries (All Models)
- Porcelain Toilet W/Foot Flush (34DS Macerator Stool Half Bath)
- Stainless Steel Under Mount Lavatory Sink
- 3 Piece Sliding Glass Shower Door
- 12V Power Vent Fan (Bathroom)
- Black Bathroom Trough Faucet
- Two Tone 5-Year Ultra Leather Jackknife Bunk Sofa w/ Filler Cushion & Cup Holders
- Flip Up Top Bunk (32DS)
- 32" LED TV / Bunk Entertainment Area (32DS)
- Latching Privacy Pocket Doors
- 72" x 80" Residential King Bed
- Under Bed Storage (32DS, 34DS)
- Bedroom Wardrobe
- Night Stands w/ Charging Stations
- Wash/Dryer Prep (N/A 32DS)
- 32" Flip Up LED Bedroom TV w/ Storage Behind
- CPAP Prep Bedroom Overhead
Systems
- Hydraulic 4-Point Auto Leveling Jacks
- Standard 100 Amp Battle Born Lithium Coach Battery (Additional Battle Born 100W Lithium Battery as Part of “Power Package” Option)
- 6KW NPS Yamaha Generator w/PureSine Inverter Technology (Manual/Keyless Start)
- Winegard 360+ HD TV & AM/FM Antenna w/ Wi-Fi & LTE Controller
- Go Power Solar Controller with 200W Solar Panel Standard (Additional 200W Solar Panel Available as Part of “Power Package” Which Includes Additional Battle Born 100 Amp Lithium Coach Battery)
- 15,000 BTU Front Air Conditioner w/Heat Pump & 13,500 BTU Rear Air Conditioner
- Battery Disconnect Switch
- Keyed Overhead Bunk Lockout Switch
- Emergency Start Switch
- 6 Gallon Gas/Electric Water Heater (16.2 GPH Quick Recovery)
- Black Tank Flush
- 35,000 BTU Furnace
- 50 Amp Service
- 70 Amp Progressive Dynamics Power Converter w/ Charge Wizard
- USB Charging Stations
- 12V Maxx Air Power Roof Vent
- Carbon Monoxide & LP Detector
- Smoke Alarm
- Fire Extinguisher
- 5,000 BTU Linear Fireplace (33DS, 34DS)
- Forest River Command Center
- Tank Levels
- Battery Level Indicator
- LP Level Indicator
- Generator Hour Meter & Start-Stop
- Arctic Package (Heated Holding Tanks/Termination Valves)
- Water Pump Power Switch
- Water Heater LP Switch
- Slide-Out Controls
Décor
- Tobacco Solid Hardwood Cabinetry
- Mink Interior
- Seaport Storm Interior
Options
- Power Package - Includes One Additional 100 Amp Battle Born Lithium Battery and One Additional 200W Solar Panel
- Theatre Seating 30DS (in place of Hide-a-Bed)
- Combo Washer/Dryer (N/A 32DS)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change to material availability.
