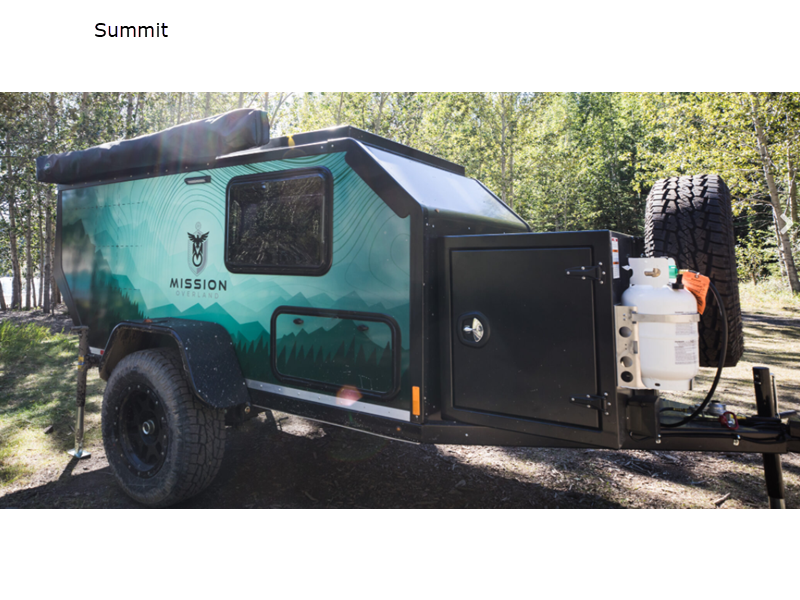

New 2023 Mission Overland SUMMIT

Travel Trailer

Stock #202018A

Lake County

1 of 5

Specifications

Sleeps	4	Length	15 ft
Ext Width	7 ft 2 in	Ext Height	6 ft 7 in
Int Height	6 ft 4 in	Exterior Color	MOUNTAIN NIGHTS
GVWR	3500 lbs	Dry Weight	2250 lbs
Cargo Capacity	1250 lbs	Fresh Water Capacity	37 gals
Tire Size	265/70R17	Number Of Bunks	2
Available Beds	RV Queen	Refrigerator Type	Dual Compartment Fridge/Freezer 12V
Cooktop Burners	2	Axle Weight	3500 lbs
LP Tank Capacity	10 lbs	Water Heater Capacity	2.64 gal
Water Heater Type	Truma Combi Eco	Axle Count	1
Number of LP Tanks	1	VIN	2M9RS14D4PW202018

Call the Lake County location @ (800) 340-9500!

Features

Standard Features (2023)

Shell/Body/Frame

Frame: Standard HSS Tubing Steel Welded Frame. Sandblasted, Primed with 2 Coats of Max Guard Black Endura Paint. Comes with a Full Aluminum Skid Plate
Fenders: Welded Tubing Framed-Fenders with 1/8 Checker Plate Aluminum
Suspension: 3500 LB Timbren Off Road Independent Axles with Dexter Hubs And Brakes
Wheels: Pro Comp Xtremme Alloy Series 6 on 5.5" Bolt Pattern
Tires: Pro Comp 265/70R17 All Terrain Sport Tires
Coupler: 360 Degree Max Coupler Hitch
Safety: 7 Pin Molded Connector, Brake Controller, Dot Compliant LED Marker Lights And Reflectors
Tongue Jack: 90 Degree Storable Tongue Jack
Rear Jacks: Dual Rear 90 Degree Storable Tongue Jacks
Walls: 1.5" 16 Gauge Aluminum Walls Inner and Outer with High Density Foam Insulation
Roof: Insulated Aluminum Framed and 1/8" Aluminum Sheeted Roof with Canvas Clam Shell which opens To 6'4" (Interior). Canvas includes Two Windows, Bug Mesh, Black Out Screen, and Rain Guard

Storage

Internal Storage: Nine Internal Storage Compartments with a Total of 11.5 Cubic Feet Of Storage Space. Includes 2 Floor to Ceiling Rear Cabinets with 4 Cupboards and 2 Easy Access Stash Compartments, 2 Large Storage Compartments Under Dining Benches, and 1 Large Storage Compartment under the Main Sleeping Area
Front Box: Heavy Duty Multi Purpose Heavy Duty Steel Top Chest (30" H X 26" D X 52" W) with Dual Openings (24" X 24" DFK), and Black Powder Coat Finish. Fridge and Batteries Stored Here
External Storage: Large Storage Area for Pots, Pans, and Utensils under the Slide Out Kitchen. Additional Luggage Compartment on Driver Side
Front Box Luggage Rack: Custom Mission Overland Roof Rack on the Front Box for Additional Storage needs

Power/Fuel

Battery: One 12 VDC Deep Cycle Battery
Charging: Exterior Standard 30AMP Shore Power Plug
Propane: Single 10 LB Propane Tank on Custom Mission Overland Aluminum Propane Mounting Bracket. Located on the Front Box
Solar: Zamp Solar Plug-In Located on Front Box
Power Switch: Off Grid Rocker Switch Panel with Built-In Relays
Interior Outlets: Dual USB Chargers with LED Voltage Displays.
Power Center: WFCO-8735 Power Center Converter Provides 35 AMP DC Output and a Highly Reliable Nominal 13.6 VDC.

Kitchen

Slide Out Kitchen: Includes Stainless Steel Sink (W/34MM F/H, 14" X 16" X 4"), Folding Glass Lid, Folding Faucet, 2 Burner Stainless Cooktop with Igniter
Fridge: Truma Integrated 69 Quart Dual Compartment (Fridge/Freezer) 12 Volt Fridge On 32" Heavy Duty Slide, and Bluetooth Control Option
Kitchen Storage: Ample Storage for Pots, Pans, and Kitchen Cutlery or Utensils

Plumbing

Water Pump: Flow-Max 12 Vdc Water Pump 3.2 GPM
Water Storage: 37 Gallon 10" Deep Hardened Poly Water Tank Internally Mounted
Shower: External Bullfinch Shower with Hose And Spray Head (Privacy Curtain Sold Separately)
Heater And Hot Water: Truma Combi Eco Heating and Hot Water Unit w/Gas Supply, Digital Screen, Room Sensor, and 10 Liter (2.64 Gallon) Capacity

Other

Windows: Two (2) 700MM X 500MM Side Windows, each contain Privacy Screen and Bug Screen
Bed: 80" X 57" (Queen) Bed with 4" Medium Density, 2LB Polyurethane Foam W/ Durable Covers
Dining: Wooden Swivel Dining Table with Seating For 4
Safety: Fire Extinguisher, Smoke Detector, Carbon Monoxide Detector, and Propane Detector
Lighting: 2 Interior LED Reading Lights, 2 Interior Light Strips, 2 Exterior LED Lights
Fan: MaxxFan Plus 10 Speed Ceiling Fan w/Intake and Exhaust and Rain Sensor.

Add On Features

Entertainment Package

Boss Audio Marine Entertainment System. Plays USB/MP3/WMA/FM/AM
Includes: Sub Pre-Amp, USB Charing, Sub Level Control, Bluetooth Audio Control
2 X MR6B 6.5-Inch, 180W 2-Way Marine Loudspeakers
Additional Dual USB Charger with LED Voltage Display, installed in Galley

Additional Options

Kids Bunks (Maximum 2)
270 Degree Awning (6 Arms)
270 Degree Awning Side Wall Kit
Shower Privacy Awning
Spare Tire Carrier w/Matching Spare
Extra Propane Bracket with Tank
190 Watt Solar Panel Kit
Low Profile Roof Rack Cross Bars

Please see us for a complete list of features and available options.

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
