+6 -
Sleeps 6
-
1 Slides
-
Bunk Over CabU Shaped Dinette
-
26ft Long
-
10,800 lbs
-
PEWTER

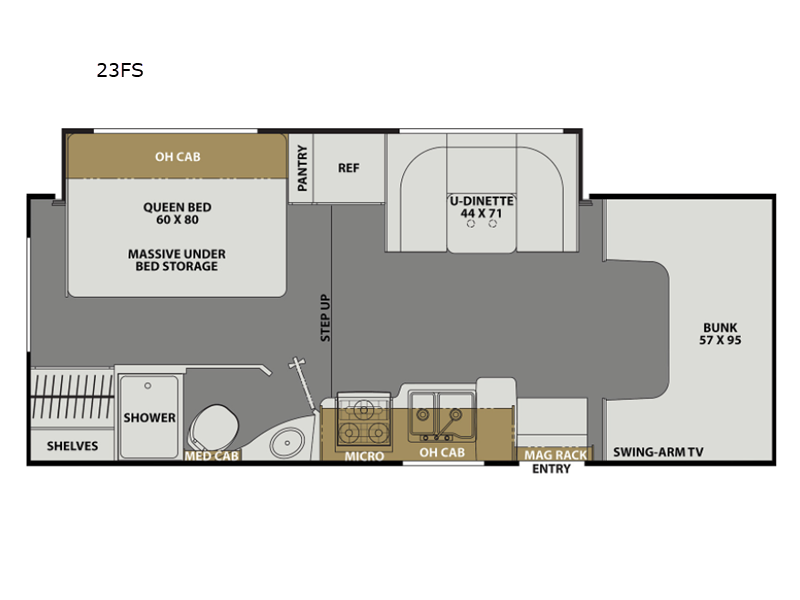

23FSF Floorplan
Specifications
| Sleeps | 6 | Slides | 1 |
| Length | 26 ft | Ext Width | 8 ft 4 in |
| Ext Height | 10 ft 11 in | Int Height | 6 ft 11 in |
| Interior Color | PEWTER | Hitch Weight | 5000 lbs |
| GVWR | 12500 lbs | Dry Weight | 10800 lbs |
| Cargo Capacity | 1700 lbs | Fresh Water Capacity | 43 gals |
| Grey Water Capacity | 31 gals | Black Water Capacity | 31 gals |
| Furnace BTU | 18000 btu | Fuel Type | Gasoline |
| Miles | 254 | Engine | 7.3L Triton V8 |
| Chassis | Ford 350 | Horsepower | 350 hp |
| Fuel Capacity | 55 gals | Wheelbase | 176 in |
| Number Of Bunks | 1 | Available Beds | Queen |
| Torque | 468 ft-lb | Refrigerator Type | Stainless Steel Double Door |
| Refrigerator Size | 10 cu ft | Cooktop Burners | 3 |
| Number of Awnings | 1 | Axle Weight Front | 5000 lbs |
| Axle Weight Rear | 8500 lbs | LP Tank Capacity | 68 lbs |
| Water Heater Capacity | 6 gal | Water Heater Type | Gas |
| AC BTU | 13500 btu | Basement Storage | 40 cu. ft. |
| TV Info | Coach 32" TV | Awning Info | 17' Electric with LED Lights |
| Gross Combined Weight | 18500 lbs | Shower Type | Standard |
| Electrical Service | 30 amp | VIN | 1FDXE4FN6PDD06189 |
Description
Coachmen Freelander Class C gas motorhome 23FS highlights:
- Full-Wall Slide
- Bunk Above Cab
- U-Shaped Dinette
- Large Closet
- Swing Arm TV
Because of the full-wall slide that has been included in this Freelander Class C gas motorhome, you will get to experience the freedom of extra space while you travel. You'll also have a comfortable place to lounge with the U-shaped dinette while the family chef prepares a hearty meal on the three-burner range in the kitchen. If you are assigned to dish duty, you will certainly appreciate having a double-bowl sink to get the job done, and you can even clean up with a hot shower underneath the bathroom skylight before heading to bed. This model includes massive under-bed storage for your luggage, board games, or other belongings, plus there is storage space with shelves for your shoes. And don't forget about the CRV Comfort Ride that is standard on this model which includes Firestone Ride-Rite adjustable rear air bags, a dynamic balanced driveshaft system, electronic stability control, and more!
With the Coachmen Freelander motorhome you will get a reliable and quality Class C gasoline coach that contains more factory-installed features than anyone else. The Freelander features Azdel composite sidewall substrate and a fiberglass exterior to keep the entire structure lightweight. You will love the interior with its hardwood cabinet doors and drawer fronts, pleated night shades, a skylight over the shower, plus a systems command center to control your units functions in one convenient location. You can bring along all of your belongings with the roto-cast rear warehouse storage compartment, and the power awning includes vinyl weather guard to help protect from the elements, plus there are LED lights for an inviting outdoor living space.
Features
Standard Features (2023)
Interior Appointments
- Appalachian Maple Cabinetry
- Hardwood Cabinet Doors and Drawer Fronts
- One-Piece Thermofoil Countertops
- Vinyl Flooring
- Roller Bearing Drawer Guides
- Pleated Night Shades and Valances
- Tinted Radius Slider Windows - Safety Glass
- Single Child Tether at Forward Facing Dinette (N/A 31FS)
- Jackknife Sofa (N/A 22XG, 23FS)
- Interior Safety Grab Handle at Entrance Door
- Booth Dinette (27QB)
- J-Dinette w/Pullout (22XG, 26DS, 29KB)
- Small U-Dinette (23FS)
- Large U-Dinette (31FS, 31MB)
- Magazine Rack above Entrance Door with HDMI and Charge Station
Interior Equipment
- Winegard Air 360+ TV/FM/AM Antenna
- LP Leak Alarm
- Smoke Detector
- Carbon Monoxide Detector
- Fire Extinguisher
- Touch Screen Radio & Back Up Monitor w/Dash Speakers
- Rear Color Backup Camera
- Bedroom TV Prep
- Cable TV, Portable Satellite Dish Exterior Hookup
- 32" Coach TV (22XG, 23FS, 27QB, 26DS)
- 39" Coach TV (29KB, 31FS, 31MB)
- Coach Stereo with AM/FM/CD/DVD (31MB)
- HDMI Port for Living Room TV
- USB Charging Ports
Galley
- Residential Size Microwave Oven
- 10 cu. ft., 12V Double Door Refrigerator (N/A 31FS)
- 17 cu. ft., 12V Double Door Refrigerator (31FS)
- Top Mount Stainless Steel Farmers Kitchen Sink (N/A 26DS)
- Top Mount Stainless Steel Single Bowl Kitchen Sink (26DS)
- Power, Lighted Range Hood
- Recessed 3-Burner Cooktop with Cover
- High-rise Kitchen Faucet
- Countertop Extension (26DS, 29KB)
- Kitchen Backsplash
Bath and Water
- Power Bath Vent
- Single Bowl Lavatory Sink
- Single Lever Lavatory Faucet
- Premium Showerhead and Faucet
- Vanity Mirror
- Plastic Curved Shower Door (22XG, 23FS, 27QB)
- Glass Shower Door (26DS, 29KB, 31FS, 31MB)
- Skylight Over Shower
- Foot Flush Toilet
- 6-Gallon Gas Water Heater
- Water Panel w/City/Tank/Winterize/Waste Tank Flush
- Demand Water Pump
- Exterior Shower (26DS, 29KB, 31FS, 31MB)
- Low Point Drain and Winterize Valve at Fresh Tank
- Glass Shower Door (26DS, 29KB, 31FS, 31MB)
Sleeping
- Murphy Residential Size Queen Bed - 60" x 80" (22XG)
- Window at Head of Bed (27QB)
- Upgraded Headboard (26DS, 29KB, 31FS, 31MB)
- Upgraded 6" Mattress w/Bedspread
- Residential Size Queen Bed - 60" X 80" (23FS, 27QB, 31MB)
- Folding Residential Size King Bed - 72" X 80" (29KB)
- Folding Residential Size Queen Bed - 60" X 80" (26DS, 31FS)
- Large Cab over Bunk - 57" X 95
- Bedroom Curtain (23FS, 27QB, 31MB)
- Cab Over Bunk Ladder w/Velcro Restraints
Electrical/Heating
- 30 amp Power Cord
- 55 amp Electronic Converter
- Auxiliary House Battery
- Auto Generator Changeover
- Onan 4.0KW Gas Generator (22XG, 23XG, 27QB)
- GFI Circuit
- Wall Mounted Thermostat
- Propane Furnace
- 13,500 BTU Non-Ducted Roof A/C (22XG, 23FS)
- Even-Cool A/C Ducting System (26DS, 27QB, 29KB, 31FS, 31MB)
- Dual A/C Pre-Wire (26DS, 29KB, 31FS, 31MB)
- LED Ceiling Lights
- Exterior Solar Port Connection
- Bed Area 110V, 12V CPAP Ready
- Bed Area USB Port
- Systems Command Center
- Exterior LP Quick Connect
- NPS 4500 Generator w/Key Fob (26DS, 29KB, 31FS, 31MB)
- 13,500 BTU Ducted Roof A/C (26DS, 27QB, 29KB, 31FS, 31MB)
- Solar Prep at Roof and Entry Cabinet
Chassis
- 55-Gallon Fuel Tank (Ford)
- Deluxe Chassis Package
- Factory Reclining Pilot and Passenger Cockpit Seats
- Driver and Passenger Air Bags
- Cruise Control
- Tilt Steering Wheel
- Dash Air Conditioning
- Power Windows and Locks
- Stainless Steel Wheel Liners
- Upgraded Steel Running Boards
- Upgrade Sideview Mirrors
- 7,500 lb. Towing Hitch w/ 7-way Plug
Exterior Equipment
- Molded Cabover Front Wrap
- Full Aluminum Framed Walls, Roof, Floor Structures
- Azdel Composite Sidewall and Cabover Construction
- Vacu-bond Laminated Walls, Roof, and Floor
- White Fiberglass Walls with Graphics Package
- CrossFlex PVC, Polyester Reinforced Roof Material
- Steel Entry Stepwell with Auxiliary House Battery Storage
- Roto-Cast Rear Warehouse Storage Compartment
- Rear Steel Bumper
- Exterior Safety Grab Handle (22XG, 23FS, 27QB)
- Power Patio Awning with LED Light Strip
- Rear Roof Ladder (26DS, 29KB, 31FS, 31MB)
- Exterior LED Taillights and Marker Lights
- Exterior Entertainment TV Ready Compartment (26DS, 29KB, 31FS, 31MB)
- Upgraded Exterior Safety Grab Handle (26DS, 29KB, 31FS, 31MB)
Interior & Exterior Decor
Exterior
- Freelander Graphics Package
Optional
- Partial Paint Exteriors w/Chrome Heated Remote Mirrors
Interior
- Pewter Decor
- Appalachian Maple Woodgrain
Optional Platinum Edition
- CarPlay Dash Radio
- Rear View Mirror Back-up Camera Monitor
- Sideview Cameras
- 6 Gal Gas and Electric Water Heater
- Convection Microwave
- Heated Remote Sideview Mirrors
- Child Safety Net at Cab Over Bunk
- Power Vents w/MaxxAir Covers (N/A w/Dual A/C option)
- Winegard Air 360+ 4G/Wi-Fi Booster
- Auto Generator Start w/Dual Coach Batteries
- Molded Fiberglass Front Cap
- Porcelain Toilet
- Kitchen Faucet w/Sprayer
- Recessed 3-Burner Range w/Oven
- Large Entry Door Handles
- Upgraded Running Boards
CRV SuperSprings Ride (MANDATORY - N/A 22XG, 27QB)
- SumoSpring Front Shock Absorbers
- SuperSpring Rear Self-Adjusting Helper Spring
- Chassis Electronic Stability Control
- Dynamic Balanced Driveshaft System
- Heavy Duty Front and Rear Stabilizer Bars
Optional Equipment
Interior Options
- Dual Recliners (26DS, 29KB, 31FS, 31MB)
- Driver/Passenger Swivel Seats, Windshield Cover & Cockpit Folding Table (N/A 27QB)
- Electric Fireplace (31MB)
- Washer/Dryer Combo (29KB, 31FS)
- Solid Surface Kitchen Countertops w/Under Mount Stainless Steel Sink (26DS, 29KB, 31FS, 31MB)
TV and Entertainment Options
- Ext. Entertainment Ctr. w/24" TV and Bluetooth Soundbar (26DS, 31FS)
- Ext. Entertainment Ctr. w/32" TV and Bluetooth Soundbar (29KB, 31MB)
- 24" Bedroom TV (26DS, 31MB)
- 22" Bedroom TV (31FS)
- 32" Bedroom TV (29KB)
Exterior Options
- Exterior Camp Table (26DS)
- Exterior Camp Kitchen Table (31MB)
- 15K BTU A/C w Heat Pump (N/A 22XG, 23FS, or w/ Dual A/C)
- Dual A/C - 11.5 BTU Ducted Front & 11.5 BTU Non-Ducted Rear (N/A 22XG, 23FS, 27QB)
- Hydraulic Leveling Jacks (26DS, 29KB, 31FS, 31MB)
- Equalizer Stabilizer Jacks (Mandatory - 26DS, 23FS, 29KB, 31FS, 31MB)
Codes and Standards
- Canadian Compliance (KPM Speedo)(Ford Only)
- CD-MVSA (Ford Only)(Mandatory on Canadian Units)
- Z240 CSA (Ford Only)
- Nebraska State Seal
- Washington State Seal
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
