Floorplan - 2016 Forest River RV Salem 29QBDS
-
-
-
-
-
1 of 6
+6-
Sleeps 9
-
2 Slides
-
BunkhouseU Shaped Dinette
-
34ft Long
-
6,977 lbs

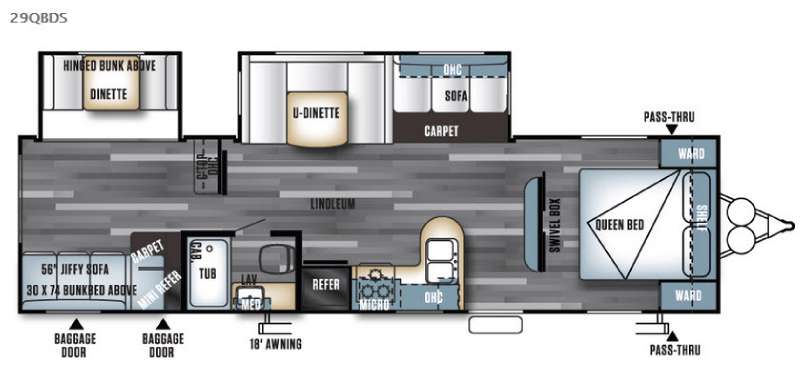

29QBDS Floorplan
29QBDS Floorplan
Specifications
Specifications
| Sleeps | 9 | Slides | 2 |
| Length | 34 ft | Ext Width | 8 ft |
| Ext Height | 11 ft 2 in | Int Height | 6 ft 6 in |
| Hitch Weight | 899 lbs | Dry Weight | 6977 lbs |
| Cargo Capacity | 2722 lbs | Fresh Water Capacity | 40 gals |
| Grey Water Capacity | 30 gals | Black Water Capacity | 27 gals |
| Furnace BTU | 25000 btu | VIN | 4X4TSME27GA316857 |
Description
Description
Inside the Salem 29QBDS travel trailer by Forest River you will find double slides and a rear bunk house.
Upon entering the travel trailer, to the left there is a double kitchen sink, three burner range, microwave, and refrigerator. The opposite side of the trailer has a slide with a u-dinette and a sofa. Along the front of the living/kitchen area you will find a swivel box for your TV.
The front bedroom offers a queen bed with wardrobes on either side of the bed.
As you proceed toward the rear of the travel trailer, the bathroom is on the left. Inside the bathroom you will find a toilet, sink, medicine cabinet, and tub.
The rear bunk house has a slide with a dinette and a hinged bunk above the dinette. On the opposite side of the room there is a sofa with a bunk above the sofa.
There are plenty of overhead cabinets throughout the interior of the travel trailer, as well as exterior storage, and much more!
Call the Rockford Location @ (800) 828-4051!
Features
Features
Standard Features (2016)
East
Construction and Exterior
- Full Walk-On One-Piece Superflex® Roof w/ 12-Year Warranty
- Extra Large Full Pass Through Storage (per floorplan)
- Cold Crack and Mildew Resistant Vinyl Patio Awning
- Safety Glass Windows
- Steel Framed 30″ Smooth Radius Fiberglass Main Entry Door
- Powder Coated I-beam Frame
- Cambered Chassis
- Enclosed Fresh Water Tank in a Heated Compartment
- 16 gal per hour Gas/Electric Quick Recovery DSI Water Heater
- Water Heater By-pass
- Nitrogen Filled Tires
- 2″ Wall Construction 16″ (or less) on Center
- R-7 Fiberglass Insulation Throughout
- 13-ply Cross Micro-Laminated Beam Header Above Slide-outs
- Triple Sealed Slideouts
- Electric Slide-Out Systems (Flush Floor)
- Swing Arm Entry Assist Handle
- Two Marine Grade Exterior Speakers
- Electric Front Jacks (Fifth Wheels)
- Fiberglass Front Cap (Fifth Wheels)
Kitchen
- Dometic® Double Door Refrigerator (2 yr. Warranty)
- High Rise Faucet
- Deep Basin 60/40 Residential Style Sink
- Microwave with Carousel
- 3-Burner, High Output Range with Oven (2 yr. Warranty)
- Range Hood with 12V Exhaust Fan and Light
- One Piece Plank Wood Linoleum Flooring
- Solid Wood Drawers
- Knife Rack (behind cooktop)
- Large Overhead Cabinets with Glass Inserts
- Central Switch Command Center
- Nickel Finished Hardware
- Full Extension Ball Bearing Drawer Guides
- Abundant Cabinet Storage
- Hinged 1/2 Barrel Storage (Some Models)
Living Room
- 80″ Interior Height Travel Trailers, 101″ on Fifth Wheels
- Ducted 13,500 BTU High Output Roof Air Conditioner with Quick Cool
- Extra Large Booth Dinette with Large Drawer (most models)
- Large Dinette Picture Window
- Digital TV Antenna and Booster
- Cable TV/Satellite Hookup
- Standard FM Stereo with DVD and Four Cube Speakers
- Patio Door with Vertical Blinds (36BHBS, 37BHSS2Q, 38RLT)
- Decorative Wall Light
- 25K BTU Suburban Forced Air DSI Furnace with Digital Thermostat (2 yr. Warranty)
- In-Floor Ducted Heat
Bedroom
- Evergreen Mattress
- Plush Comforter and Headboard
- Strut Lifted Storage Area under Bed
- Bedside Mirrored Wardrobes with Shelf
- Bedside 110V Power Outlets (2)
- Solid Bedroom Privacy Doors (Most Models)
- Storage Shelf Above Bed
Bathroom
- 12V Power Bath Roof Exhaust Vent
- Wooden Medicine Cabinet w/ Mirrored Door
- Foot Flush Toilet
- Tooth Brush Holder and Towel Ring
- Vinyl Tub Surround
- Frosted Glass Barrel Shower w/Tub Surround (27RLSS, 27RKSS, 29RKSS, 29FKBS, 31BKIS, 36BHBS, 37BHSS2Q, 38RLT)
Security and Safety
- Hitch Light (Travel Trailer)
- Welded Heavy Duty Safety Chains (Travel Trailers)
- LP Leak Detector
- Smoke Detector
- LED Docking Lights (Fifth Wheels)
- Carbon Monoxide Detector
- Fire Extinguisher
- Electric Brakes (all wheels)
- GFI Receptacles
- ANSI 119.2 Certified
- Meets all National Highway Administration Specifications
Options
- 30 lb. LP Bottles with Cover and Auto Change Over (Travel Trailer Only)
- Stabilizer Jacks (Fifth Wheel (2), Travel Trailer (4))
- Skylight Over Tub
- Contact your Salem dealer for a complete list of options
Northwest
Construction and Exterior
- Full walk on one-piece Superflex® roof w/12 year warranty
- Extra large full pass through storage (per floorplan)
- Cold crack and mildew resistant vinyl patio awning
- Safety glass windows
- Steel framed 30″ smooth radius fiberglass main entry door
- Cambered chassis
- Enclosed fresh water tank in a heated compartment
- 16-gal. per hour GE quick recovery DSI water heater
- Water heater by-pass
- 2″ wall construction 16″ (or less) on center
- R-7 fiberglass insulation throughout
- 13 ply cross micro-laminated beam header above slide outs
- Triple seal slide outs
- Electric slide out systems (flush floor)
- Swing arm entry assist handle
- Two marine grade exterior speakers
Kitchen
- Dometic® double door refrigerator (2 yr. warranty)
- High rise faucet
- Deep basin 60/40 residential style sink
- Microwave w/ carousel
- 3-Burner, high output range with oven (2 yr. warranty)
- Range hood w/ 12-volt exhaust fan and light
- One piece plank wood linoleum flooring
- Solid wood drawers
- Knife rack (behind cook top)
- Large overhead cabinets w/ glass inserts
- Central switch command center
- Nickel finished hardware
- Full extension ball bearing drawer guides
- Abundant cabinet storage
- Hinged 1/2 barrel storage (Some models)
Living Room
- 80″ interior height travel trailers
- Ducted 13,500 BTU high output roof air conditioner w/ quick cool
- Huge storage drawer at sofa base (select models)
- Extra large booth dinette w/ large drawer (most models)
- Large dinette picture window
- Digital TV antenna and booster
- Cable TV/ satellite hook-up
- Standard FM stereo w/ DVD and four cube speakers
- Decorative wall light
- 25K BTU suburban forced air DSI furnace w/ digital thermostat (2 yr. warranty)
- In-floor ducted heat
Bedroom
- Residential bed mattress
- Plush comforter and headboard
- Strut lifted storage area under bed
- Bedside mirrored wardrobes w/ shelf
- Bedside 110-volt power outlets (2)
- Solid bedroom privacy doors (most models)
- Storage shelf above bed
Bathroom
- 12-volt power bath roof exhaust vent
- Wooden medicine cabinet w/ mirrored door
- Foot flush toilet
- Tooth brush holder and towel ring
- Vinyl tub surround
- Frosted glass barrel shower with tub surround (21RBS, 23RBS, 24RKS, 27RLSS, 27RKSS)
Security and Safety
- LP leak detector
- Smoke detector
- Carbon monoxide detector
- Fire extinguisher
- Hitch light
- Welded heavy duty safety chains
- Electric brakes (all wheels)
- GFI receptacles
- ANSI 119.2 certified
- Meets all national highway administration specifications
Options
- 4 Power stabilizer jacks
- Skylight over tub
- 30-lb LP bottles w/ cover and auto change over
- Power Awning with Adjustable Legs
- Power Tongue Jack
- Touch Screen Remote
- External LED Strip Lighting
- AM/FM/CD/DVD Player
- Night Shades
- Decorative Curtain Rods
- Astro Foil (Ceiling and Floor)
- Upgraded Mattress
- Black Tank Flush
- Bedroom Roof Vent
- LP Quick Disconnect
- Coat Rack
- 22″ Range IPO 17″ Range
West
Standards
- 6′ 8″ Interior Height
- Range with Oven In Place of Cooktop
- Double Door Refer
- Super Lube Axles
- Smooth Metal Front Wrap with Rock Guard
- Switch Control Center
- TV Antenna with Booster
- Microwave with Carousel
- Water Heater By-Pass (N/A with Tankless)
- Radial Tires
- 13.5 K BTU Ducted Air Conditioner
- Exterior Marine Speakers
- Designer Bedding
- Wood Plank Linoleum
- Decorative Curtain Rods with Pleated Shades in Living Area
- Retractable Awning
- Safety Glass Black Framed Slider Windows
- Radius Entry Door and Steps
- 30 amp Power Cord
- Pass Through Storage (most models)
- Full Extension Ball Bearing Drawer Guides
- 6 gal Direct Spark Ignition Gas/Electric Water Heater
- Foot Flush Toilet
- DVD, MP3, CD, FM Stereo
- Self Adjusting Brakes
- 56 gal Fresh Water Capacity
- Outside Kitchen (T32BHDS)
- Glass Shower Door (With Neo Angle Shower)
Options
- Spare Tire & Carrier with Cover
- 15 K BTU Ducted Air Conditioning
- Stabilizer Jacks
- Power Tongue Jack
- Electric Awning
- Roof Ladder
- Skylight Over Tub
- Black Tank Flush
- 30 lb LP Bottles
- Cable/Satellite TV Ready
- 160W Solar Panel with Regulator
- Climate A Package (Radiant Foil & 12V Heat Strips)
- Storage Plus Door (Per Floor Plan)
- Tankless Water Heater
See us for a complete list of features & available options!
All standard features and specifications are subject to change.
